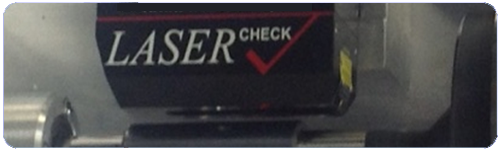

YYL006212 Sensor measuring wrist pin roughness in automated 100% inspection station

Control Surface Roughness in Production with Lasercheck®

Monitor Surface Roughness in Real Time

Lasercheck® is the most durable, high speed surface finish measurement systems in the world. Unique patented techology makes Lasercheck® the world's only surface roughness measurement systems capable of real-time automated measurement of moving parts in production.

With no moving parts and no fragile stylus tips to wear out and replace, Lasercheck® reliably operates on the production floor without need for maintenance or calibration cost or concern.

  • Eliminate maintenance costs associated with fragile stylus instruments
  • Eliminate requirement for regular calibration cheecks and adjustment
  • Consistent results less dependant on operator skill
  • 100% detection of non-conforming parts in production operations

Optimized for High Quality Surface Finishing Processes

Lasercheck® technology is optimized for measurement of ground, sanded, polished, honed, super-finished, and sand blast surfaces, and ideally suited for manufacturers producing and inspecting surfaces such as:

  • Solar cell production
  • Rolls used for sheet metal rolling and other web processes
  • Cylindrical ground rods, bars, shafts, fine surgical guide wire
  • High surface quality brushed, sanded, and polished sheet metal
  • Camshaft / Crankshaft journals & lobes
  • Highly finished Engine, Steering, Driveshaft, Suspension components

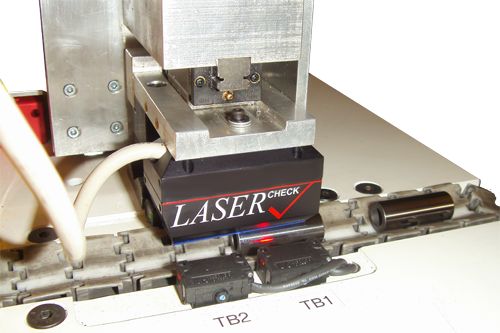

6212POM System measuring roughness of wrist pins on conveyor output of Through Feed Polisher Automated Lasercheck® Inspection of Wrist Pin Finishes

Lasercheck® Systems consist of a laser based non-contact surface finish sensor with a dedicated electronic controller. Automated controllers with full I/O capability allow dedicated 100% automated inspection and control of surfaces produced in high volume, high value manufacturing operations.

Lasercheck® Product Options



Automated Operation

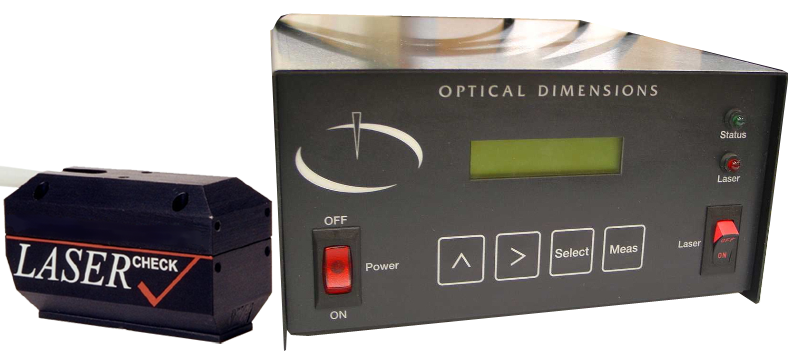

6212A Automated  System

6212A Automated System



Manual or Automated Operation

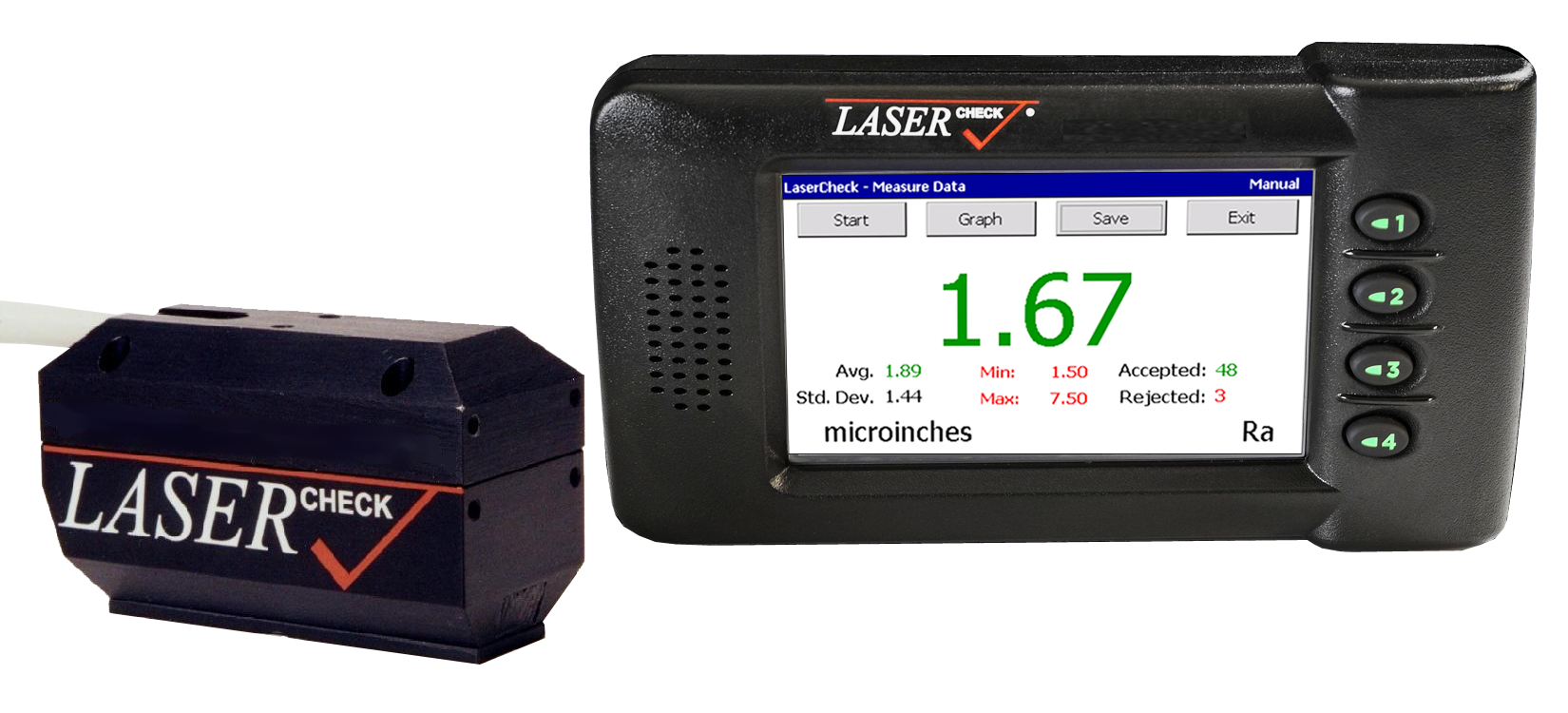

6212Auto  System

6212Auto System



OEM Integration

6212C OEM System.

6212C OEM System
